Compact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building
Compact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building
Compact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building
Compact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building
Compact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building
Compact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building

Compact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building

Get a Quote
  • VIDEO
  • PRODUCT DETAILS
  • RELATED PRODUCTS
VIDEO
PRODUCT DETAILS

Compact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building supplier

Structural DetailsCompact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building supplier
Standard OptionsCompact Design Outdoor Use Quickly Installation Z Folding Modular Prefab Container House Office Building factory

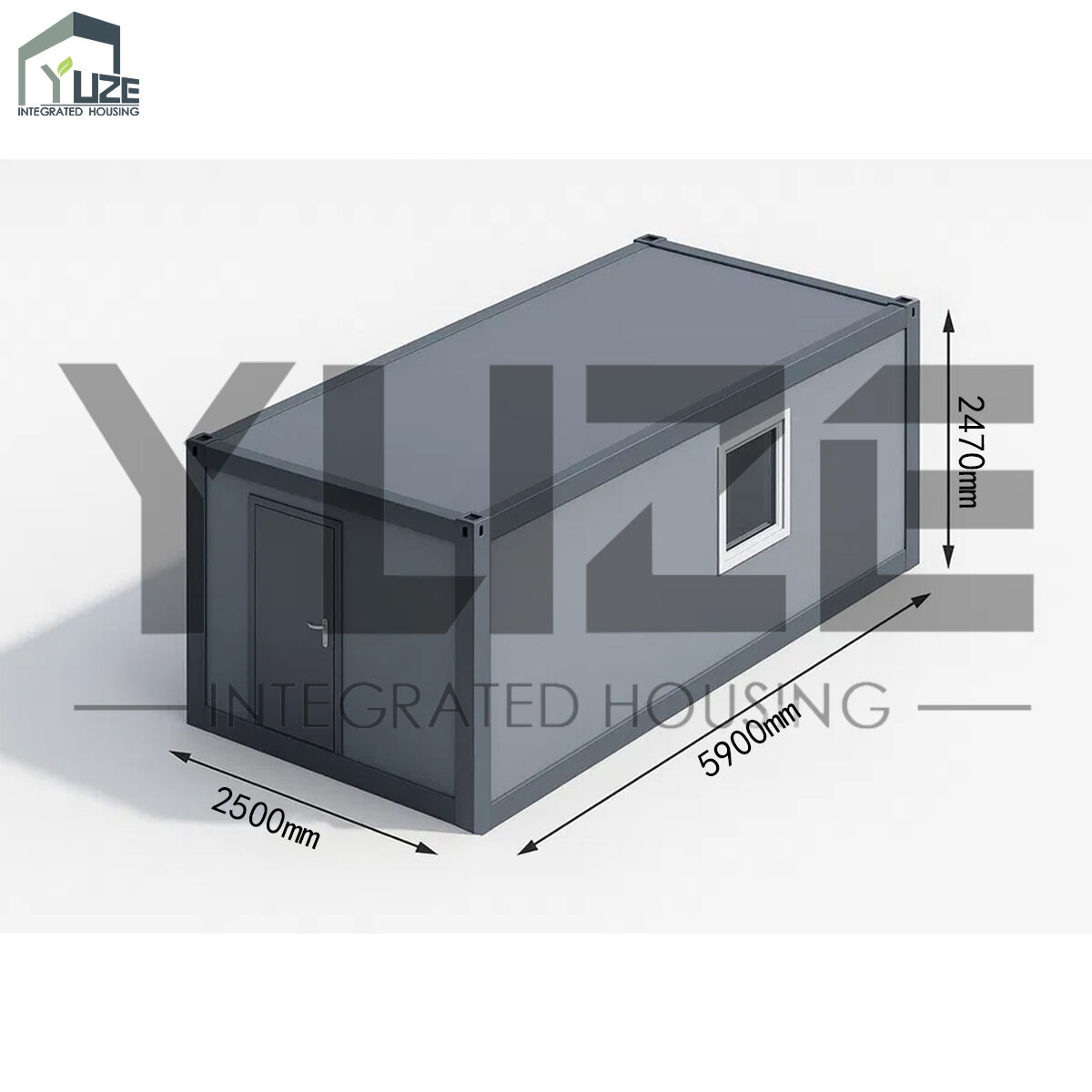

Standard Size
Type
External Length (mm)
External Width (mm)
External Height (mm)
Internal Length (mm)
Internal Width (mm)
Internal Height (mm)
Internal Area (m2)
Z-folding container
5900
2500
2470
5780
2340
2280
13.52
X-folding container
5800
2500
2390
5635
2370
2265
13.35

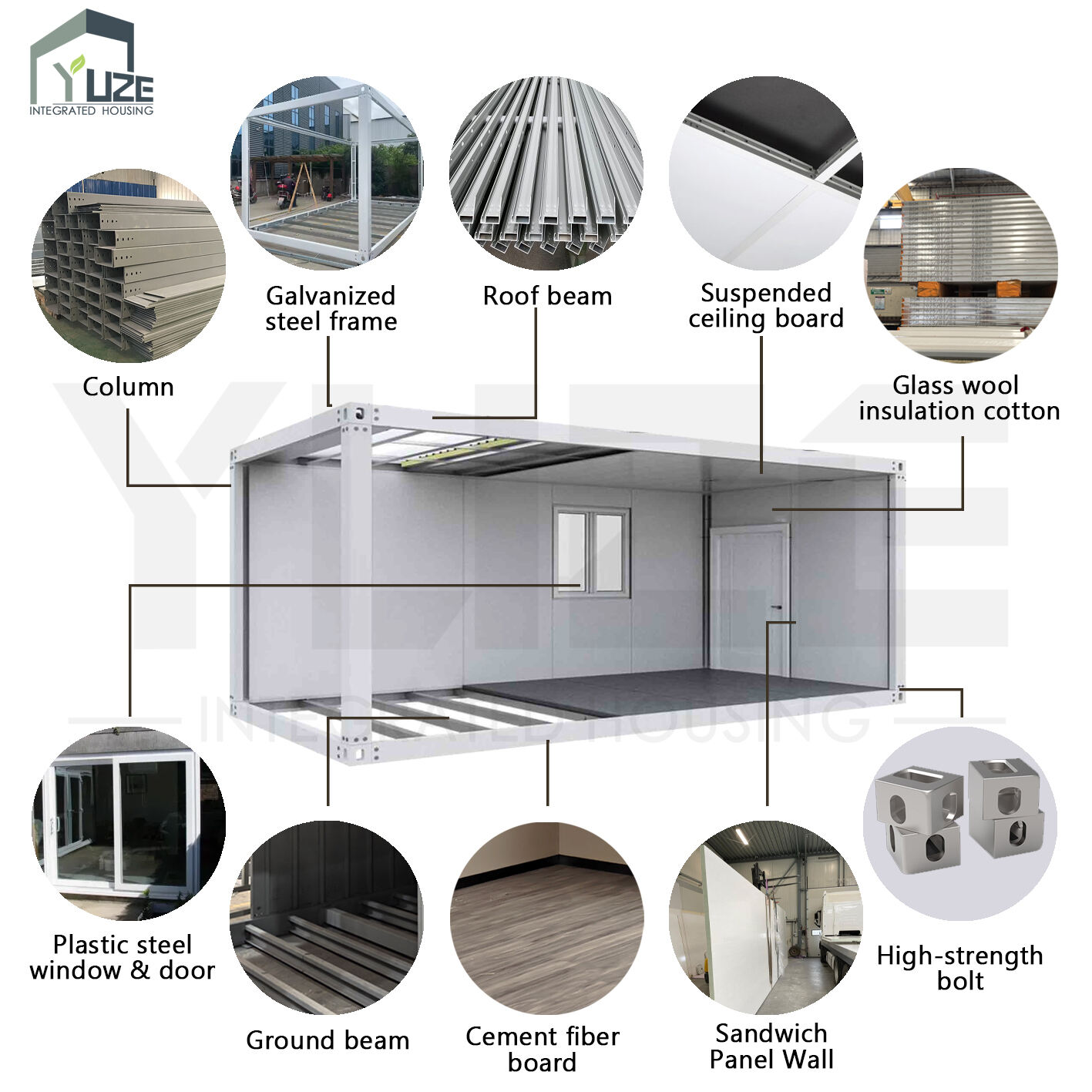

Component Material Parameters
Component
Material
Characteristics
Column
Galvanized Steel Pipe
High-Strength Support
Roof Beam
Galvanized Steel Square Pipe
Superior Corrosion Resistance
Bottom Beam
Special Shaped Steel Galvanized Concave Convex Pipe
Effective Sound Insulation, Reduces Vibration, Similar to Concrete Floor Structure
Floor
MGO Board
High Strength, Fire Resistance, Water Resistance, Moisture Resistance
External Roof
1040 color steel tile
Bending Strength Equivalent
Internal Ceiling
831 ceiling tile
High Durability
Side Wall Column
Galvanized Steel Pipe with U-shaped Groove
High Structural Strength
Side Wall Panel
Rock Wool Sandwich Panel
Bending Strength Equivalent
Insulation Material
50mm Thick Rock Wool Sandwich Panel
Good Thermal Insulation and Cold Resistance, Class A Fire Protection
Hinge
High-strength galvanized hinge
Superior Structural Strength
Corner Fittings
High-Strength Steel Corner Fittings
Used for Connection and Stacking
Door
Special Steel Anti-theft Door
Equipped with Lock
Window
Plastic Steel Sliding Window
Equipped with Safety Bars
Traits ＆ Interior Configuration
Product Traits
Feature
Parameter
Seismic Resistance
Level 10
Wind Resistance
Wind Speed Level 10
Fire Resistance
A-level Fire Resistance
Roof Load Capacity
0.5kn/m²
Floor Load Capacity
1.5kn/m²
Wall Load Capacity
0.8kn/m²
Service Life
20 years
Color
Black, White or Customizable
Other Optional Facilities
Facilities
Details
Shower Room
Independent design, can include hot water equipment
Toilet
Flush toilet, washbasin, drainage system
Furniture
One-stop procurement according to customer needs
Additional Facilities
Air conditioning, ventilation equipment can be added

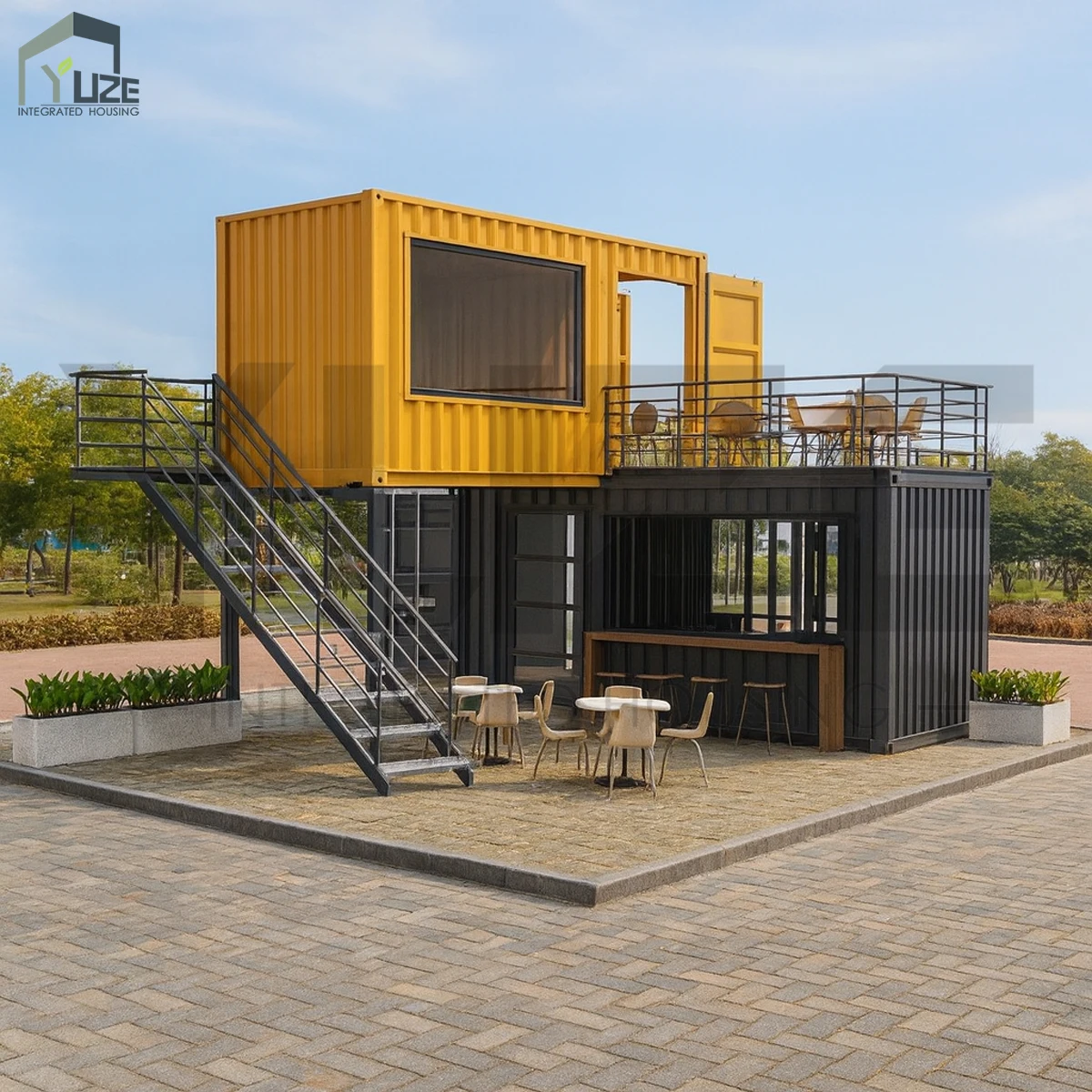

Stylish Modular Container Cafe with Large Glass Panels Mobile 2 Story Prefab Store Shop factory
